Architecture

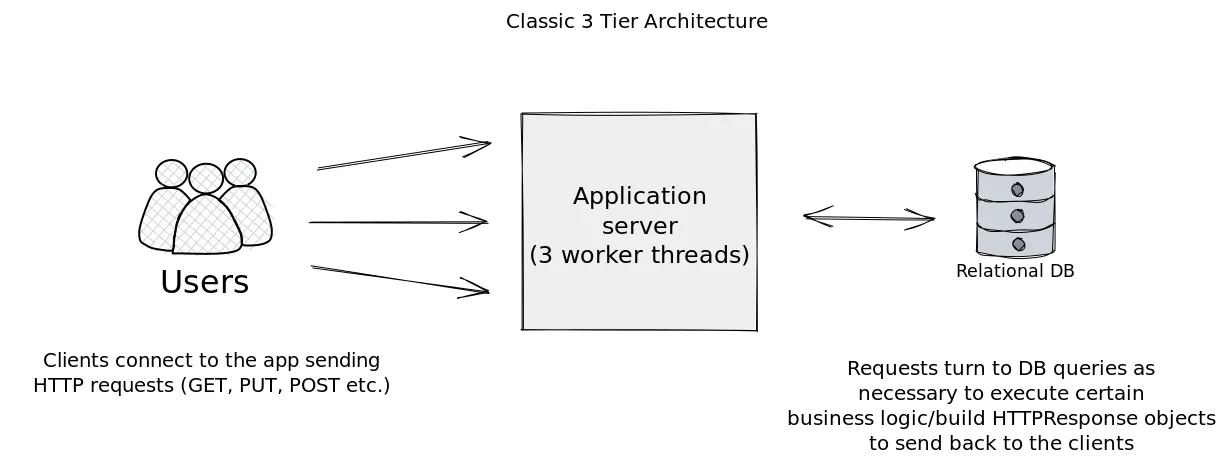

With Django, we are able to have a classic 3-tier Architecture setup right out of the box and looks something along the lines of this:
In this diagram, we have clients connecting via some listener that listens for connection requests. Let’s say our client performs a GET request - the kernel wlll load balnce this to multiple threads (in our case, we have 3 worker threads for our app server).
The thread picks it up, parses and understands we have a GET request incoming, it turns around and have some data that needs fetching from the DB.
This is when Django creates a connection to the database, ONLY upon needing to connect to the database, it doesn’t do so on startup
At this point, the TCP connection to the DB will be handled (3-way-handshake) - the cost of the DB connection will be incurred on the request itself.
After this, Django writes the response to the client socket - building the HTTPReponse to the client. Once this whole process is done, it closes the backend connection.
The goal with a Django backend was to minimize the number of database connections, as no. of connections directly relate to the load/usage of the DB.
This was true maybe 10 years ago, but this is no longer as effective. People have moved to persisted connections.
That’s how HTTP 1.0 worked - and we got around using Keepalive. HTTP 2.0 changed all of that with connections always alive, sending tons of streamed multiplex requests and connections.
If we are “chatty” with the DB, we need persisted connectinos.
In Django, we can use a CONN_MAX_AGE variable and set its value to None to not terminate DB level connections and keep them persisting.
The connection will remain alive until it fails (network failure/socket closure).
From the Django documentation, Django persisted connections still have limitations - if you have one thread, you still only get one connection aka One connection per thread model.
Due to this, the burden of responsibility now falls under how your front-end listening model is.

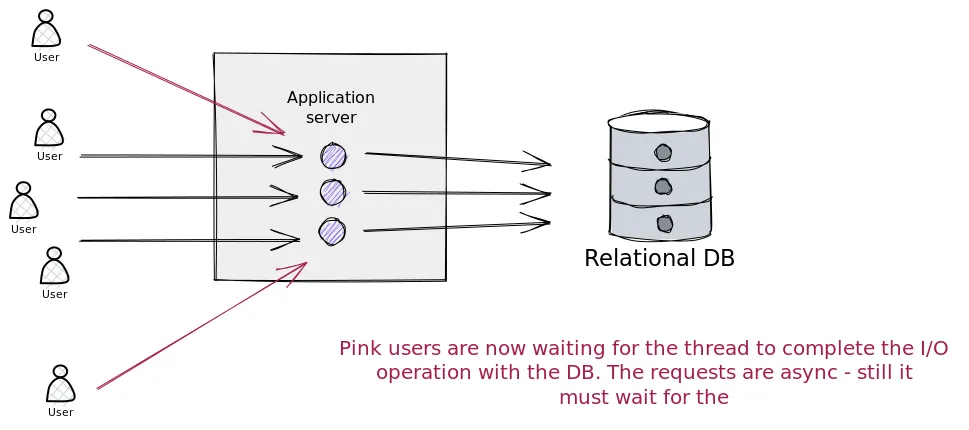

Assuming our front-end listening is also one thread per client as well, our scenario looks something like this:

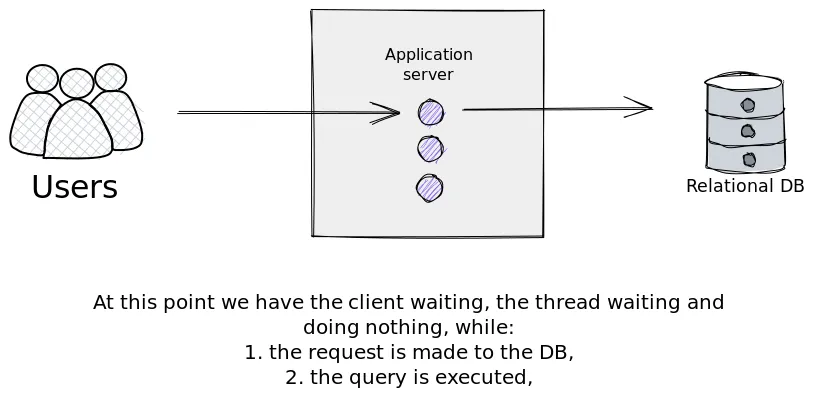

These requests are async, yet I/O operations on the thread limits it from taking another request that requires something from the DB as welll. Yes, the thread if “free” to do other stuff, but what?
An example is if one of these other requests don’t have anything to do with the DB, but are reading from a cache, or are computing a hash. This same thread can happily perform these aditional tasks as long as they are asynchronously communicated.
However, if majority of your requests require DB reads/writes, then the primary purpose for these threads is to handle connections and process I/O. Now if we have another request coming in which would require DB access, while the thread is still handling a previous I/O request to the DB, then we essentially have to wait, and in-turn, keep the client waiting.
Quite obvious why this design was done since not all DBs can handle pipelined SQL queries and Django wants to provide us Consistency. You can run into anomal reads/writes depending on which query got excuted faster, directly messing with our DB consistency. We trade off availability for consistency.
NOTE: Postgres 14 supports pipelined SQL statements
Most of the time, we cannot guarantee we can do this with our DB.
So what can you do in this situation where you need threads to perform lots of I/O with the DB?
Spin up more threads for Django!
You can do this uptill a certain number of threads based on hardware - after that there’ll be a severe degradation in performance. General recommendation from NGINX is 1 thread/core (2 if hyperthreading enabled). If you had 100 threads for 4 cores, the cost of context switch the CPU inccurs for these threads across the 4 cores will kill performance (this is assuming Django is the only thing running on this system).
